CAT66断路器分析仪和计时器 CAT66断路器分析仪和计时器 CAT66断路器分析仪和计时器

瑞典DV POWER CAT66断路器分析仪和计时器

型      号:CAT66断路器分析仪和计时器
品      牌:瑞典DV POWER
会员价格:面议
联系方式: 010-68940148
在线解答: 价格咨询 技术咨询 维修咨询
立即咨询
瑞典DV POWER
瑞典DV POWER

IBEKO POWER AB 公司位于瑞典,专业致力于新一代电力测试设备的研发和制造,所有产品均采用更先进的技术和工艺制造。“DV- power”是其商标,该系列产品是由前“Programma”公司的一组工程师与ABB 公司共同研发的。我司成立于2000年,由一群电力电子技术领域...[查看更多]

浏览过此产品的用户最终购买了
瑞典 DV Power CAT66断路器分析仪和计时器由爱仪器仪表网代理,CAT66是可以是单机控制或通过PC控制,来评估断路器状态的数字化仪器。现在热卖中,如需购买,可通过ai1718.com的客服热线联系我们!

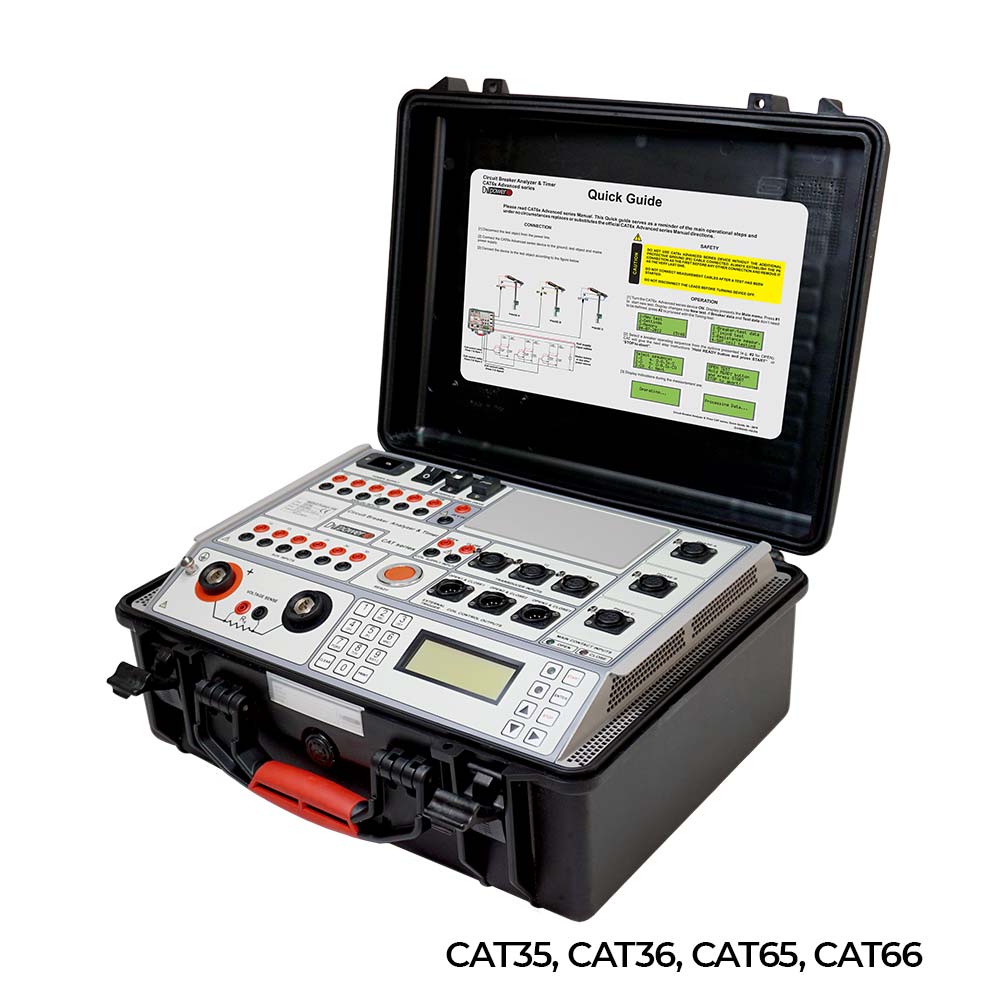

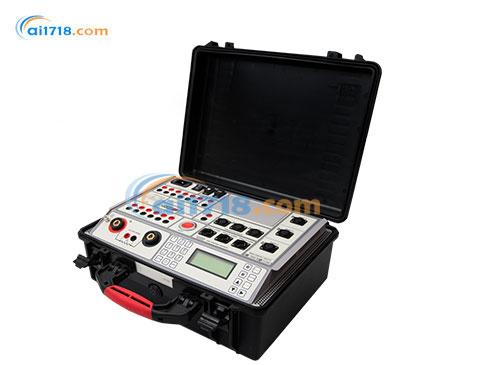

瑞典DV POWER CAT66断路器分析仪和计时器


CAT66断路器分析仪和计时器简介:
•CAT66是可以是单机控制或通过PC控制,来评估断路器状态的数字化仪器
•CAT66坚固耐用的设计结合了*的技术与新的增强功能,为中压或高压的瓷柱式断路器和落地罐式断路器安全快速检测而设计
•CAT66用户可以选择任何想要的操作模式:关闭(C)打开(O),闭-开(CO),开闭(OC),开-关-开(OCO)
•CAT66测试结果可以存储在仪器内部的存储器,U盘或以表格和图表的形式通过热敏打印机打印出来

CAT66断路器分析仪和计时器特点:
•安全快速检测与BSG(双端接地)
•简单和易于操作
•时间和运动测量
•6个定时通道(3×2)的主触点电阻
•3个定时通道的辅助输入
•合闸电阻测量
•4个模拟输入+1个传感器输入
•同时支持数字和模拟传感器
•测试结果使用DV-WIN软件详细分析

CAT66断路器分析仪和计时器原理:
•断路器状态评估的重要组成部分,是通过新的测试结果比较之前的测试中得到的结果
•测量值与制造商提供的规格做比较。获得测试数据可以在后期作为序列测量的参考
•为了提供准确的比较,测试需要使用相同的测试参数来进行
•在测试结果的偏差和变化可能表明该断路器状态变差
•此功能可以在DV-WIN实现测试计划和图形叠加功能
•断路器检修过程的*结果,可通过DV-WIN软件分析和创建定制报告

CAT66断路器分析仪和计时器应用:
•可进行对所有断路器的应用程序列表:
•高达12个主触头同步定时测量(每相4个)
•包括合闸电阻(如果在电路断路器存在的话)和6辅助触点
•合闸电阻测量(如果在断路器存在的话)
•评估断路器各极间的同步性
•同时对4线圈电流的分析(3打开和1闭合线圈)
•通过图形显示的电压值评价的变电站电池状态
•位移,触头接触,超程,回弹,阻尼时间和断路器运动部件的平均速度测量
•*次跳闸测试
•静态接触电阻测量(测试电流高达500A)
•动态电阻测量(测试电流高达500A)
•在落地罐式断路器磁心去磁(CAT66D可配置)

CAT系列
•CAT03
•CAT31
•CAT34
•CAT61
•CAT64
•CAT65
•CAT66
•CAT66D
•CAT125
•CAT126


CAT35订购信息
Instrument Article No
Circuit Breaker Analyzer & Timer CAT35 CAT3500-N-01
Circuit Breaker Analyzer & Timer CAT36 CAT3600-N-01
Circuit Breaker Analyzer & Timer CAT64A CAT64A0-N-01
Circuit Breaker Analyzer & Timer CAT65 CAT6500-N-01
Circuit Breaker Analyzer & Timer CAT66 CAT6600-N-01
Circuit Breaker Analyzer & Timer CAT124A CAT124A-N-01
Circuit Breaker Analyzer & Timer CAT125 CAT1250-N-01
Circuit Breaker Analyzer & Timer CAT126 CAT1260-N-01
Included accessories
Windows based DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
Plastic transport case
Standard accessories Article No
Main contact cables
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT35, CAT36) CM-05-34MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT64A, CAT65, CAT66) CM-05-65MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT124A, CAT125, CAT126) CM-05- 12MXST
Main contact cables extension
Main contact cables extension 10 m (32.8 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66) E3- 10-65MXFX
Main contact cables extension 10 m (32.8 ft) (for CAT124A, CAT125, CAT126) E6- 10- 12MXFX
Control cabinet cables
Coil control cable set 5 m (16.4 ft) with banana plugs
(Single-pole control -6 coil channels)
CO-05-6BC5B1
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (red) (x 6) JCR- 15-2REBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (black) (x 6) JCB- 15-2REBP
Test probe with grip jaws (black) (x 3) TESTPR-GJ-B0
Test probe with grip jaws (red) (x 3) TESTPR-GJ-R0
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs CS-05-02BPBP
Auxiliary contacts cable set 12 x 5 m (16.4 ft) with banana plugs AX-05-02BPBP
Analog channels cable set 12 x 5 m (16.4 ft) with banana plugs AN-05-02BPBP
Current cables
Current cables 2 x 10 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps
(for CAT36, CAT66 and CAT126)
C2- 10-50VMB3
Current cables 2 x 10 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps
(for CAT35, CAT65 and CAT125)
C2- 10-25VMB1
Sense cables
Sense cables 2 x 10 m (32.8 ft) with alligator clamps
(for CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)
S2- 10-02BPA1
Cable cases
Cable plastic case - large size (x 2) CABLE-CAS-03
Optional accessories and features Article No
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker
for CAT3x Advanced series (3 channels - one break per phase)
(available with CAT35 and CAT36)
BSG-CATII-00
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker
for CAT6x and CAT12x Advanced series (6 channels - two breaks per phase)
(available with CAT65, CAT66, CAT125 and CAT126)
BSG-CATII-01
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Dead Tank Circuit
Breaker for CAT Advanced series
(available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)
BSG-CATDTB-0
BSG on GIS feature for CAT Advanced series (available with CAT36, CAT66 and CAT126) BSG-CATGIS-0
Current cables with branch connectors 2 x (3 x 5 m, 16 mm2) with SCT clamps C6BC-05-16GMST
Extension cables 2 x 5 m 50 mm2 E2-05-50VMVF
AC Current clamp 1 A / 1 V and cable 5 m with banana plugs CACL-ACBP-05
Built-in high precision measurement module
(available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)
RMO-HPMM-DG0
Current clamp 30/300 A power supplied from the instrument with adapter 5 m (16.4 ft) CACL-0300-07
Current clamp 30/300 A with internal battery supply and extension 5 m (16.4 ft) CACL-0300-08
Thermal printer 112 mm (4.4 inch) (built-in) PRINT- 112-01
Thermal paper roll PRINT- 112-RO
Cable plastic case with wheels - large size CABLE-CAS-W3
Control cabinet cables
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels) CO- 10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels) CO- 15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels) CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control - 2 coil channels) CO- 10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control - 2 coil channels) CO- 15-00C5B1
Coil supply cable set 4 x 2 m 2,5 mm2 (6.5 ft, 13 AWG) with banana plugs CS-02-02BPBP
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs CS-05-02BPBP
Coil supply cable set 4 x 10 m 2,5 mm2 (32.8 ft, 13 AWG) with banana plugs CS- 10-02BPBP
Coil supply cable set 2 x 2 m 2,5 mm2 with banana plugs C2-02-02BPBP
Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs C2-05-02BPBP
Coil supply cable set 2 x 10 m 2,5 mm2 with banana plugs C2- 10-02BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (black) JCB- 15-2BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (red) JCR- 15-2BPBP
Auxiliary contacts cable set 12 x 5 m with banana plugs AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs AX- 10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs AX- 15-02BPBP
Analog channels cable set 12 x 5 m with banana plugs AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs AN- 10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs AN- 15-02BPBP
Main contact cables
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT35, CAT36) CM-03-34MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT64A, CAT65, CAT66) CM-03-65MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT124A, CAT125, CAT126) CM-03- 12MXST
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT35, CAT36) CM-03-34MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT35, CAT36) CM-05-34MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT64A, CAT65, CAT66) CM-03-65MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT64A, CAT65, CAT66) CM-05-65MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT124A, CAT125, CAT126) CM-03- 12MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT124A, CAT125, CAT126) CM-05- 12MXA2
Main contact cables extension
Main contact cables Extension 5 m (16.4 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66) E3-05-65MXFX
Main contact cables Extension 5 m (16.4 ft) (for CAT124A, CAT125, CAT126) E6-05- 12MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT35, CAT64A, CAT65, CAT66) E3- 15-65MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT124A, CAT125, CAT126) E6- 15- 12MXFX
Current cables
Current cables 2 x 5 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps
(for CAT36, CAT66 and CAT126)
C2-05-50VMB3
Current cables 2 x 15 m 70 mm2 (49.2 ft, 00 AWG) with battery clamps
(for CAT36, CAT66 and CAT126)
C2- 15-70VMB3
Current cables 2 x 5 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps
(for CAT35, CAT65 and CAT125)
C2-05-25VMB1
Current cables 2 x 15 m 35 mm2 (49.2 ft, 2 AWG) with battery clamps
(for CAT35, CAT65 and CAT125)
C2- 15-35VMB1
Sense cables
Sense cables 2 x 5 m (32.8 ft) with alligator clamps A2 S2-05-02BPA2
Sense cables 2 x 15 m (49.2 ft) with alligator clamps A2 S2- 15-02BPA2
Transducers
Digital rotary transducer with 5 m (16.4 ft) connection cable DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft) connection cable DRT-250-C610
Digital rotary transducer with 5 m (16.4 ft) connection cable with accessories DRT-SET-0005
Digital rotary transducer with 10 m (32.8 ft) connection cable with accessories DRT-SET-0010
Linear analog transducer (TLH) 150 mm (5.9 in) with 5 m (16.4 ft) connection cable and
linear transducer rod
LAT- 150-C305
Linear analog transducer (TLH) 225 mm (8.85 in) with 5 m (16.4 ft) connection cable
and linear transducer rod
LAT-225-C305
Linear analog transducer (TLH) 300 mm (11.8 in) with 5 m (16.4 ft) connection cable
and linear transducer rod
LAT-300-C305
Linear analog transducer (TLH) 500 mm (19.68 in) with 5 m (16.4 ft) connection cable
and linear transducer rod
LAT-500-C305
Three phase digital rotary transducer kit (with 5 m connection cable) TPH-DRTS-005
Online first trip test kit - Three-pole control for CAT Advanced series ONFTT-KIT-01
Online first trip test kit - Single-pole control for CAT Advanced series ONFTT-KIT-00
Transducer mounting kits
Universal transducer mounting kit UTM-KIT-0000
Universal transducer mounting kit - extended version UTM-KIT-0001
Doble transducer adapter DTA-BOX-C002
Big clamping base UTM-LCB-0080
Small clamping base UTM-SCB-0030
Articulated arm UTM-AA-0288
Carrier (L profile) for digital rotary transducer DRT-CRL-0090
Carrier for analog rotary transducer ART-CRL-0000
Linear transducer rod LAT-ROD-0000
Bellow coupling (M6) DRT-COUP-003
Bellow coupling (M10) DRT-COUP-001
Magnet UTM-MAG-0800
Four mechanical adapters 10 mm (M6, M8, M10, M12) DRT-MADP-004
Four mechanical adapters 6 mm (M6, M8, M10, M12) DRT-MADP-604

CAT66断路器分析仪和计时器规格
电源供应
根据 IEC/EN60320-1; UL498, CSA 22.2连接
电源 90 V - 264 V AC
频率 50/60 Hz
I输入功率 3900 VA
保险丝15 A / 250 V,快速反应,但不是用户可更换
适用标准
安装/过电压 第二类
污染 2度
安全

LVD 2014 / 35 /欧盟(CE符合)

标准EN 61010-1

EMC

指令2014 / 30 /欧盟(CE符合标准EN

61326-1:2006)

CAN/CSA-C22.2 No. 61010-1
环境条件
操作温度 -10 ºC - + 55 ºC / 14 ºF - +131 ºF
存储和运输 -40 ºC - + 70ºC / -40 ºF - +158 ºF
湿度 度5% - 95%相对湿度
尺寸/重量
尺寸(宽 x 高 x 深):

480 mm x 197 mm x 395 mm

18.89 in x 7.75 in x 15.55 in

重量 12,9 kg / 28.4 lbs
